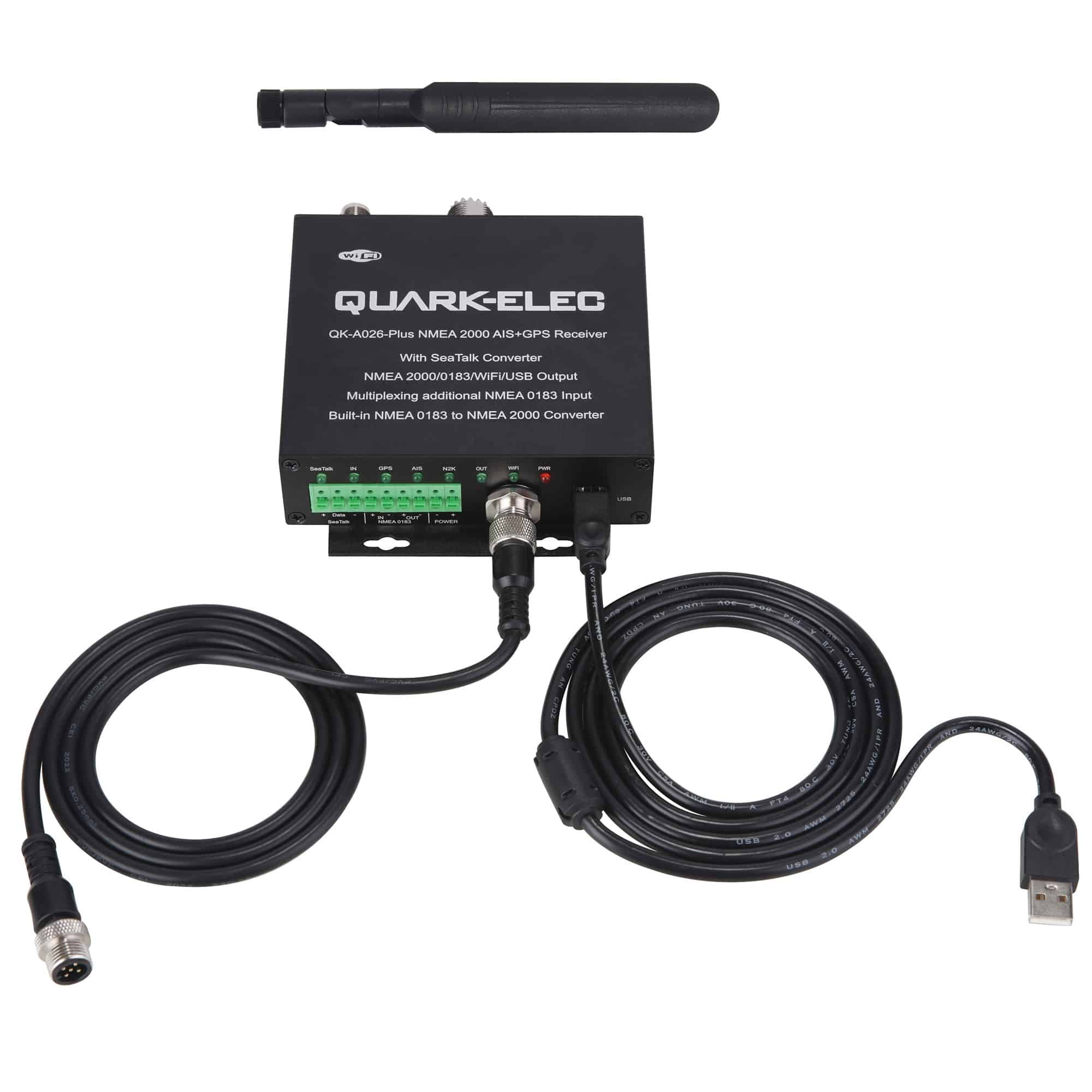

QK-A026-plus NMEA 2000 AIS Receiver with NMEA Multiplexer + N2K Converter + WiFi + GPS

Technical Specifications & Features

• Two independent receivers monitoring AIS channels simultaneously
• Sensitivity up to -112 dBm@30% PER (up to 450% more sensitive than the A026)
• Up to 40 nautical miles receiving range
• SeaTalk¹ to NMEA 0183 protocol converter
• NMEA 0183 message output through WiFi, USB and NMEA 0183
• Built-in GPS to provide positional data
• Multiplexing NMEA input with AIS+GPS sentences, and outputs as a seamless stream of data
• Convert the combined NMEA 0183 data into NMEA 2000 PGNs
• The internal WiFi access point connects up to 4 devices simultaneously
• Plug & Play connectivity with chart plotters and PCs
• Compatible with Windows, Mac, Linux, Android and iOS. Please note, initial configuration may only be performed using a Windows operating system.

Connections

QK-A026+ has the following connections/indicators:

• AIS antenna connector.  Heavy duty SO239 VHF type connector for external antenna. An active VHF antenna splitter(e.g. QK-A015-RX ) is required if one VHF antenna is shared by QK-A026-plus and VHF voice radio.
• GPS connector .A TNC female bulkhead connector is for external GPS antenna. An integrated GPS module supplies positional data provided a GPS antenna is connected.
• WiFi connector. A SMA connector. Connectivity in both Ad-hoc and Station Modes on 802.11 b/g/n provides WiFi output of all messages. WiFi can also be disabled by setup into standby mode.
• USB connector. r. The A026+ is supplied with a type B USB connector and USB cable. The USB
  cable can be linked directly to a USB port on the PC. The USB connector provides data input and
  output as standard (multiplexed information from all input instruments will be sent to this
  connection). The USB port is also used to configure the A026+ and to update its firmware.
• NMEA 0183 output connectors. A026+ can be connected to other AIS compatible equipment, like wind/depth or heading sensors, via the NMEA inputs. The NMEA 0183 messages from these devices can be multiplexed with AIS+GPS messages and then sent out through the NMEA 0183 output, WiFi, USB and NMEA 2000 backbone to a chart plotter or other on-board device.
• NMEA 2000. The A026+ is pre-fitted with a five-core screened cable for the NMEA 2000 connection, fitted with a male micro-fit connector. Simply connect the cable to the network backbone using a T-piece connector. An NMEA 2000 backbone always requires two termination resistors, one at each end.

If in doubt contact us for advice.

What’s included?

• 1 x QK-A026+
• 1 x USB cable
• 1 x 1m NMEA 2000 drop cable
• 1 x Setup Guidebook
• 1 x WiFi antenna
